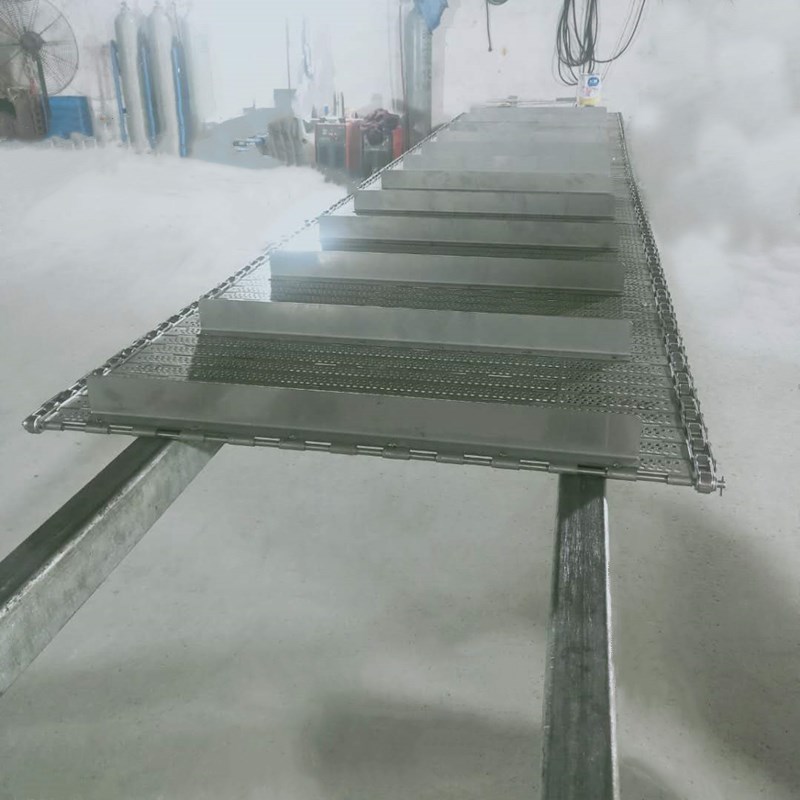

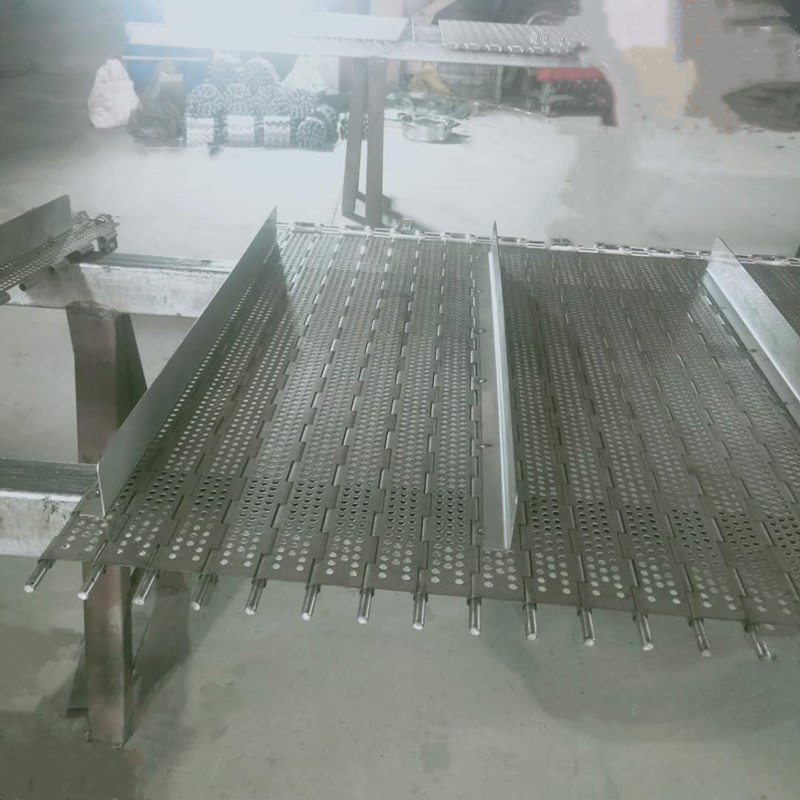

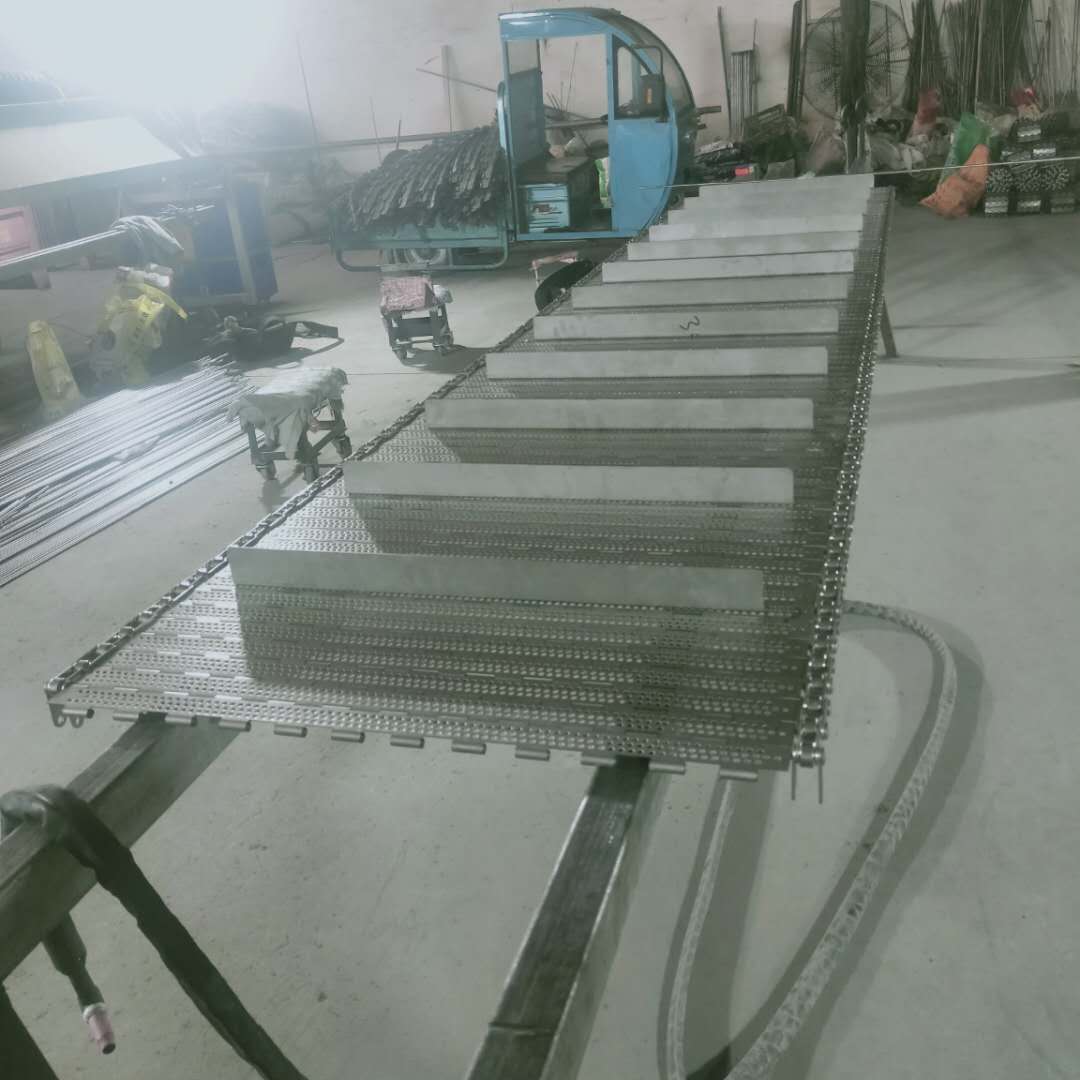

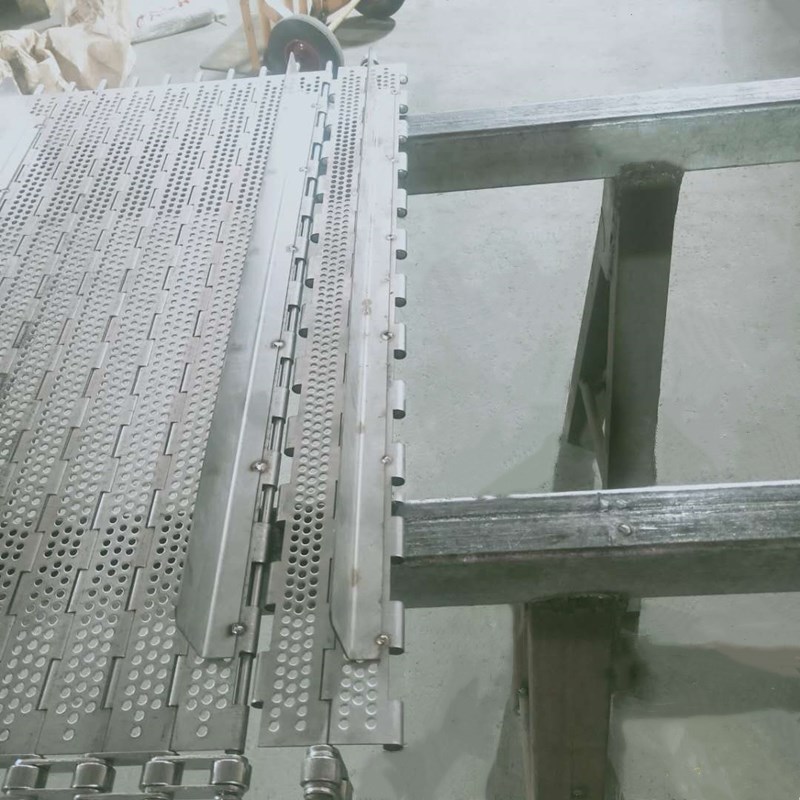

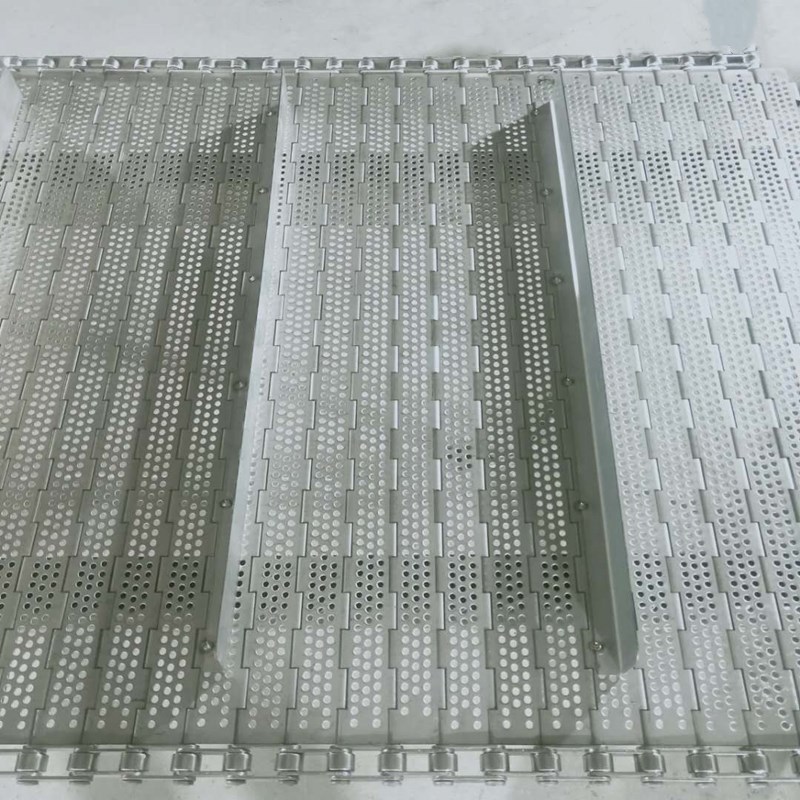

Chain conveyor belt The chain plate conveyor belt is very strong, driven by stainless steel chain and produced by stainless steel plate. It is suitable for conveying fine high density objects. It runs smoothly during transportation, easy to install and replace, and has a long service life. For medium and large load transportation. The steel plate bends to form a blade and uses a branch shaft to string the blade and chain together. The chain at both ends can be fixed with an opening pin or washer. The opening pin is convenient for disassembly and maintenance. Chain board: According to material: carbon steel chain conveyor belt, galvanized chain conveyor belt, stainless steel 201 chain conveyor belt, stainless steel 304 chain conveyor belt, other stainless steel chain conveyor belt. 2, according to the shape: flat chain plate conveyor belt, with transverse baffle chain plate conveyor belt, with side chain plate conveyor belt, punching chain plate conveyor belt (round hole, long hole), with raised chain plate conveyor belt. 3, according to the form of transport: direct transmission chain conveyor belt, turning chain conveyor belt. 4, hinge plate conveyor belt, chip chain plate conveyor belt, channel steel chain plate conveyor belt. Double pitch chain conveyor belt, precision roller chain conveyor belt. Data required for customized chain boards Material of chain pitch chain 2. Effective Delivery Width of Chain Plate 3. Length of branch shaft Is the branch shaft on both sides of the chain plate welded or open pin. 5. Other accessories with fender How big is the hole spacing
