双股网带Double mesh belt

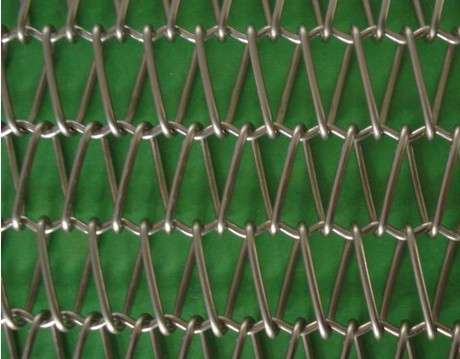

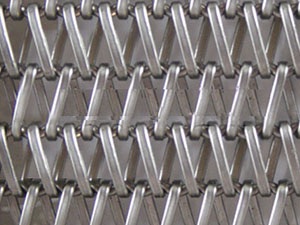

Double Balanced Weave
A modified variation of balance weave, using two inter-woven spirals. Two 12 pitch spirals are woven together to form a 24 pitch belt. Available in any material.
DB-24-10-6-8
DB = double balance
24 = 24 loops of wire per foot width
10 = 10 spirals connected in a foot of length
6 = 6 gauge connecting pin (.192” diameter)
8 = 8 gauge spiral wire (.162” diameter)
Most commonly used in elevated temperature applications for Sintering, Brazing and Annealing.
